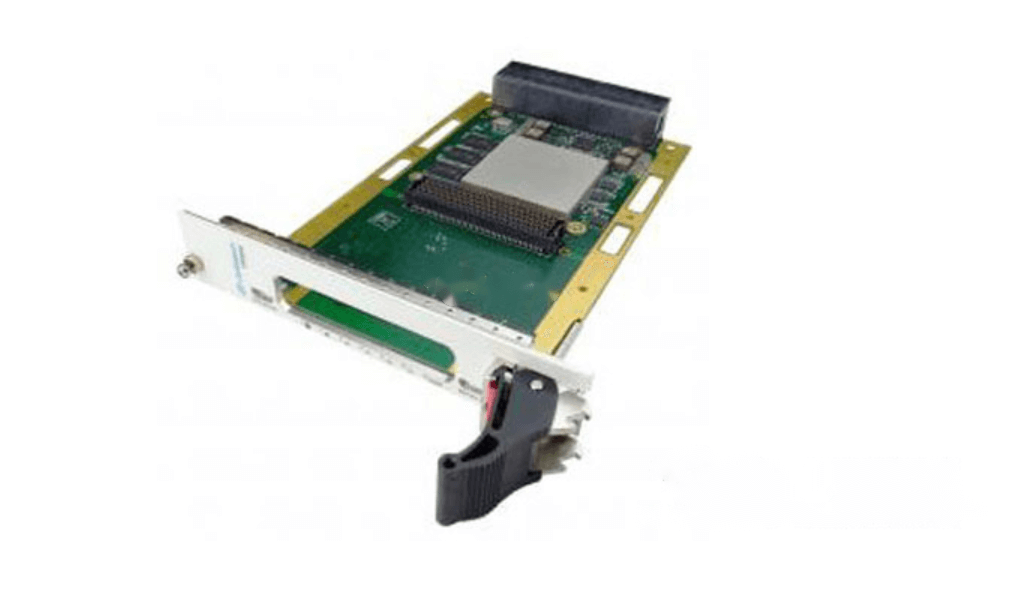

23U VPX signal processing board based on XC7V690T
This board based on 3U VPX cooling system, which is suitable for high-speed image processing, radar signal processing and so on. The chip adopts industrial grade design. The processing board contains 1 piece of Xilinx's Virtex7 series FPGA-XC7V690T-2FFG1761i. Onboard two sets of 64-bit wide DDR3, each with a capacity of 4GB and an HPC FMC interface. The VPX interface connects four groups of X4 GTH, 24 groups of LVDS, one group of RS422, and one group of 1000base-T. The electrical and mechanical design of the board is based on THE VPX standard (VITA 46.0). It supports cooling function and can meet users' needs in special environments.
Specifications
Specification
| Main processor | Xilinx XC7V690T-2FFG1761I |
|---|---|
| Standard | VPX VITA 46.0 |
| FMC interface | FMC ANSI/VITA 57.1 – 2008 ,ASP-134486-01 In HPC:LA,HA,HB full interface and DP0~DP7 eight channel high speed interface |
| On-board cache | Two sets of DDR, each set of 512Mx64bit(4GB), MT41K512M8Rh-125-it |
| Loading Flash | BPI Load model,BPI Flash 2Gb |
| VPX interface | P1: GTX X16, which supports PCIe and SRIO protocols P2: LVDS X24, RS422 for one route, 1000base-T for one route |
| Emulator interface | 1x 6Pin JTAG interface, spacing 2.54mm |
| LED | Two power status indicator, FPGA status indicator (Can be programmed) |
| Reset the channel | external reset |
| Size | 100mm x 160mm x20mm |
| Power supply | +12V@4A |
| Power consumption | 48W |
| Working temperature | Industrial -20℃ to +65℃ |
Test Software
| Main processor | XC7V690T-2FFG1761I |
|---|---|
| Software Version | Vivado2017.4 |
| Interface test program | DDR test、RapidIO test program、Gigabit network、RS232 test |
| Interface application program | RapidIO client Windows program PCIe client test program |
| FMC test program on board | Provide the corresponding test interface program according to the sub-card model |
