X5G liveSSD for MobilePhones

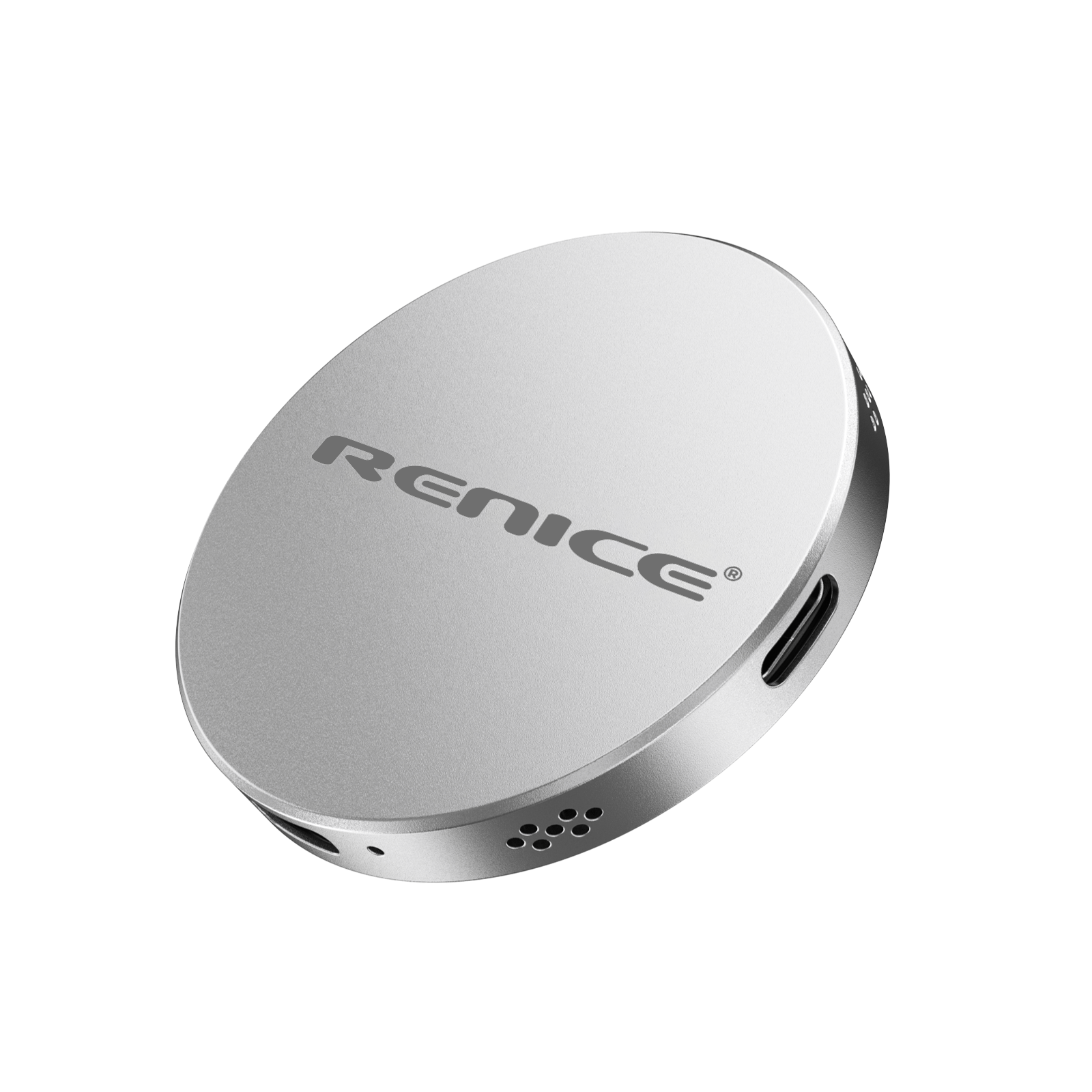

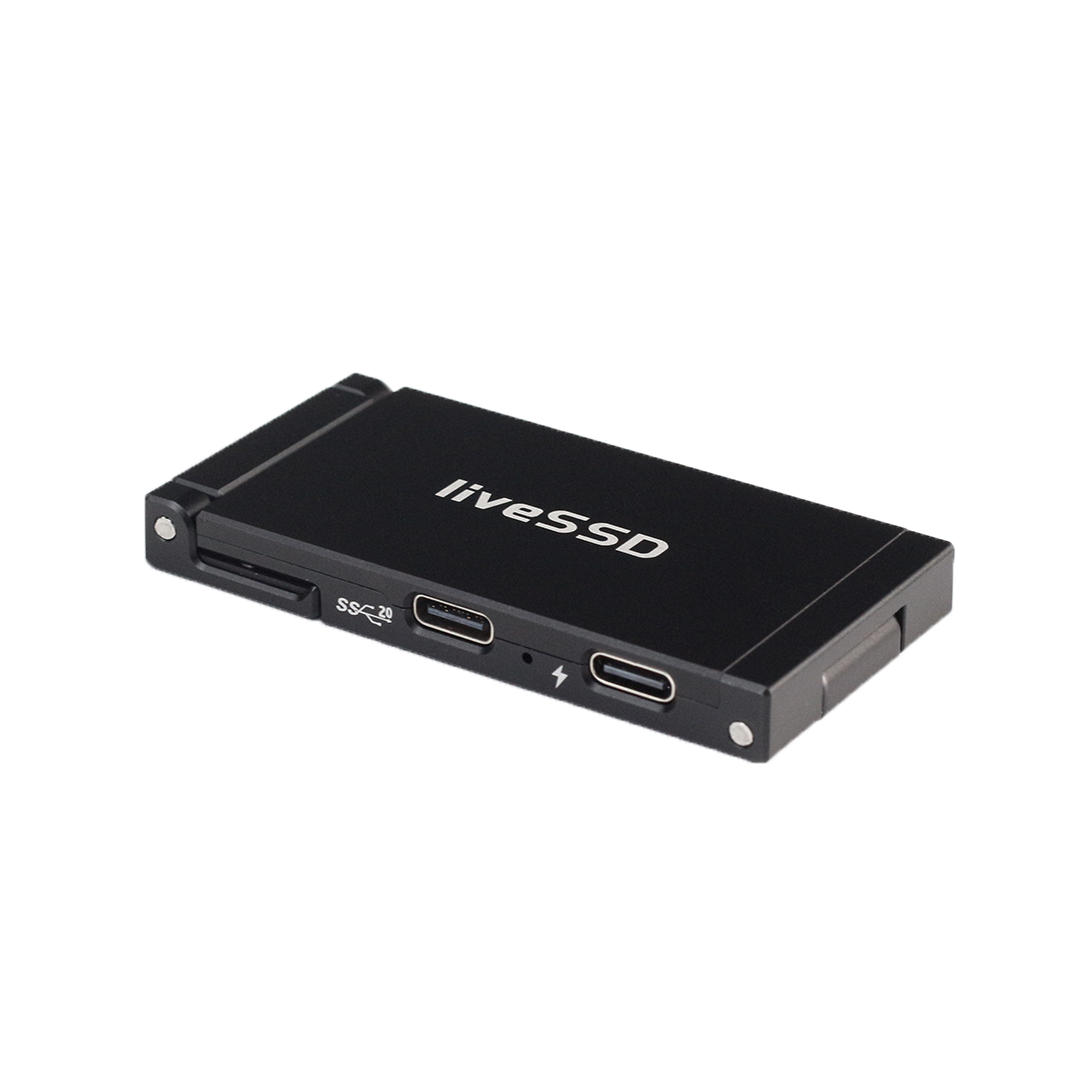

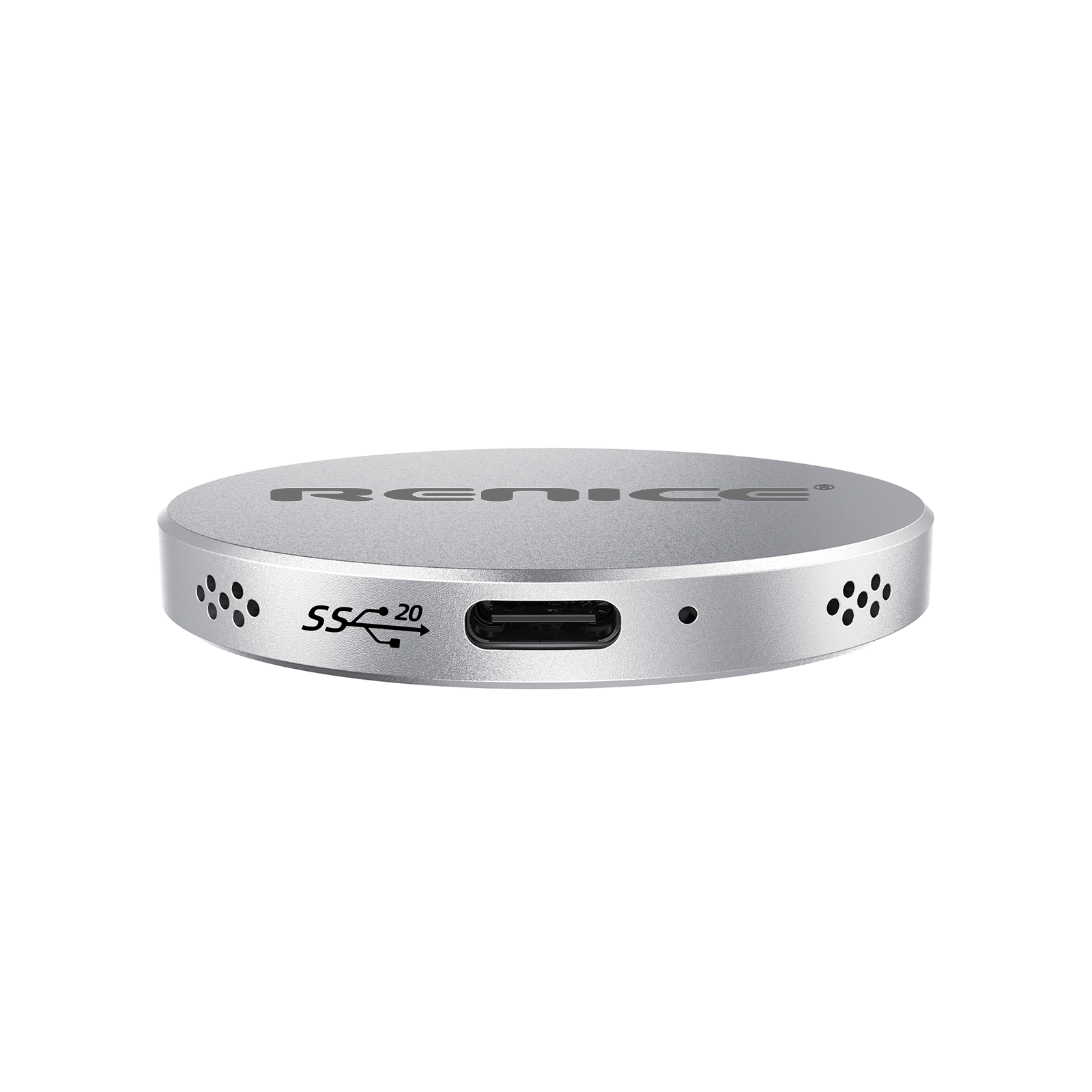

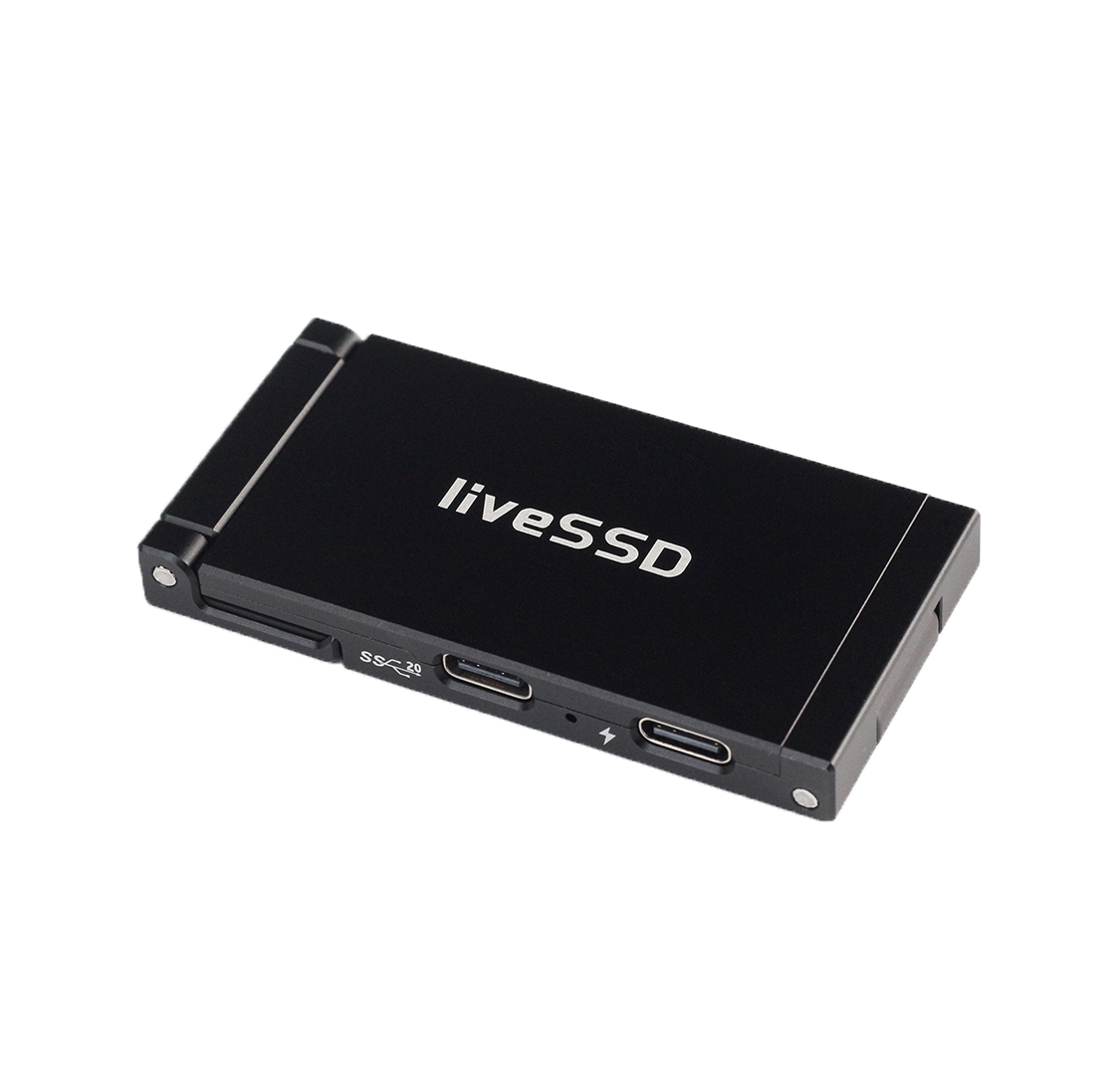

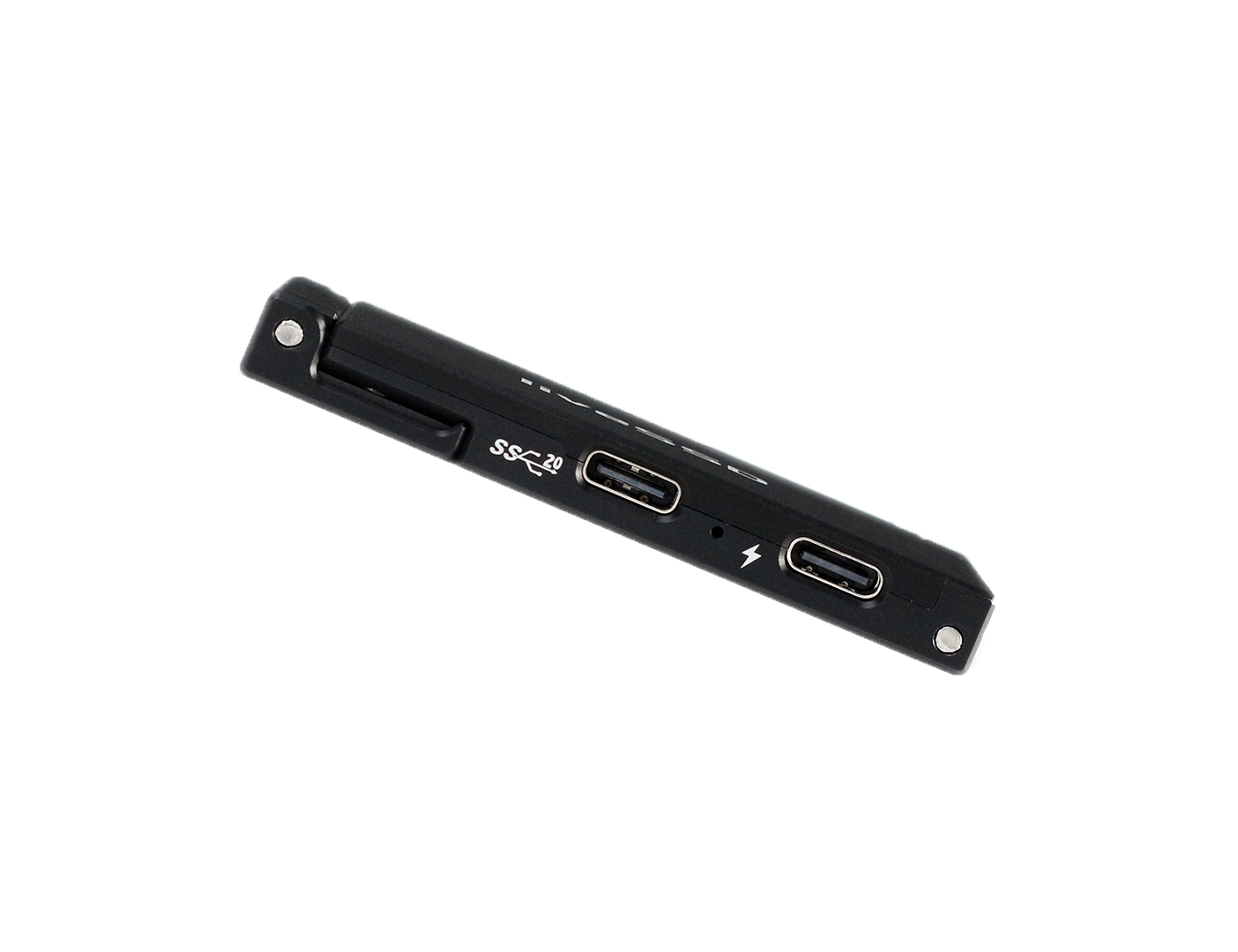

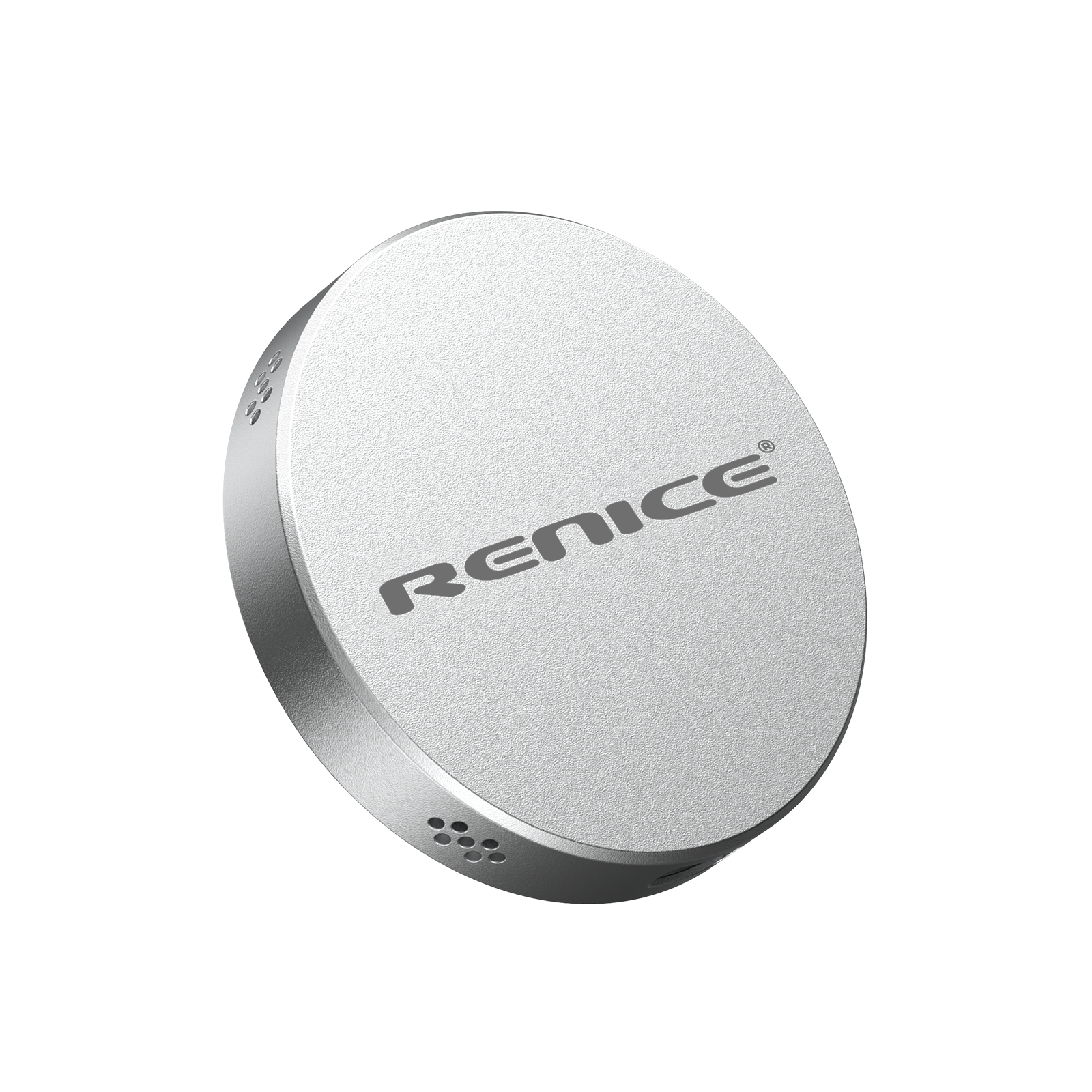

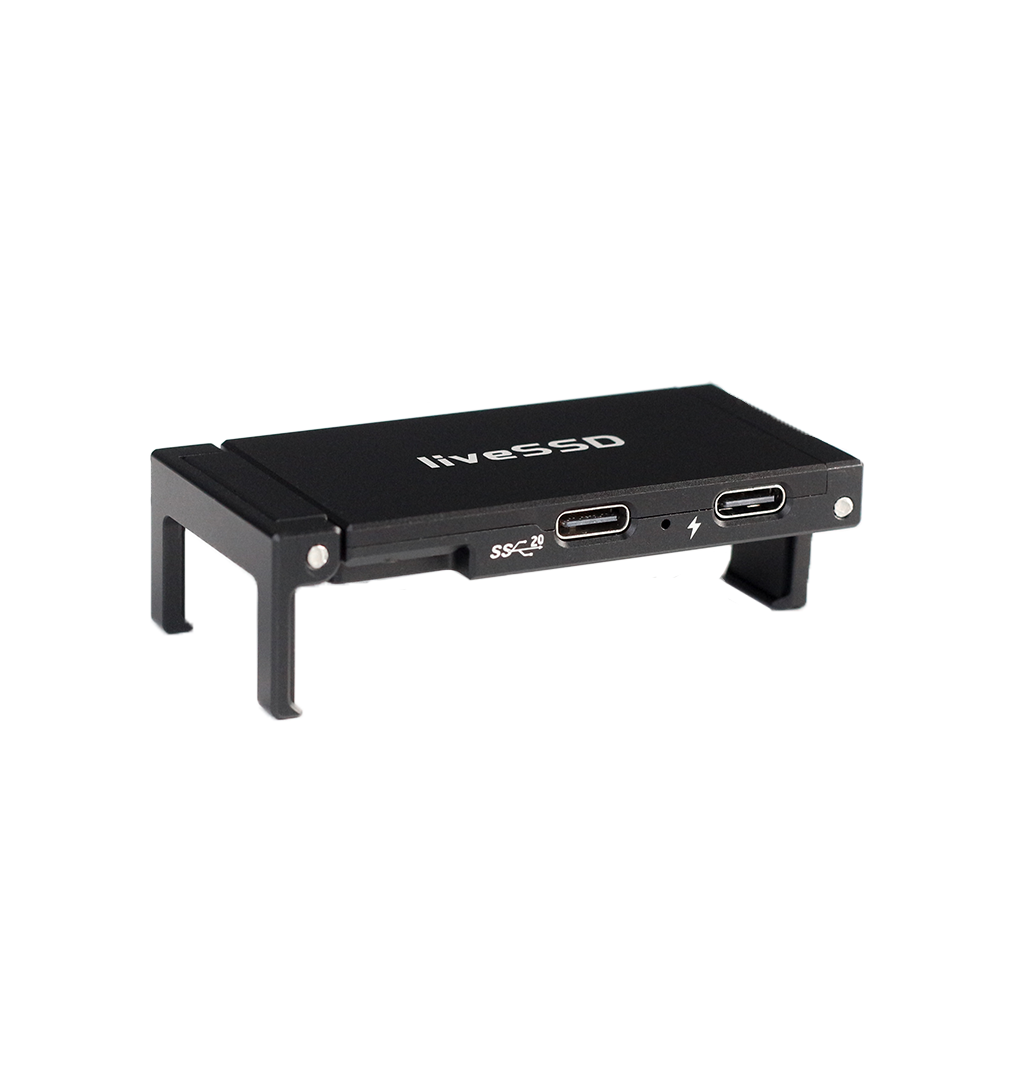

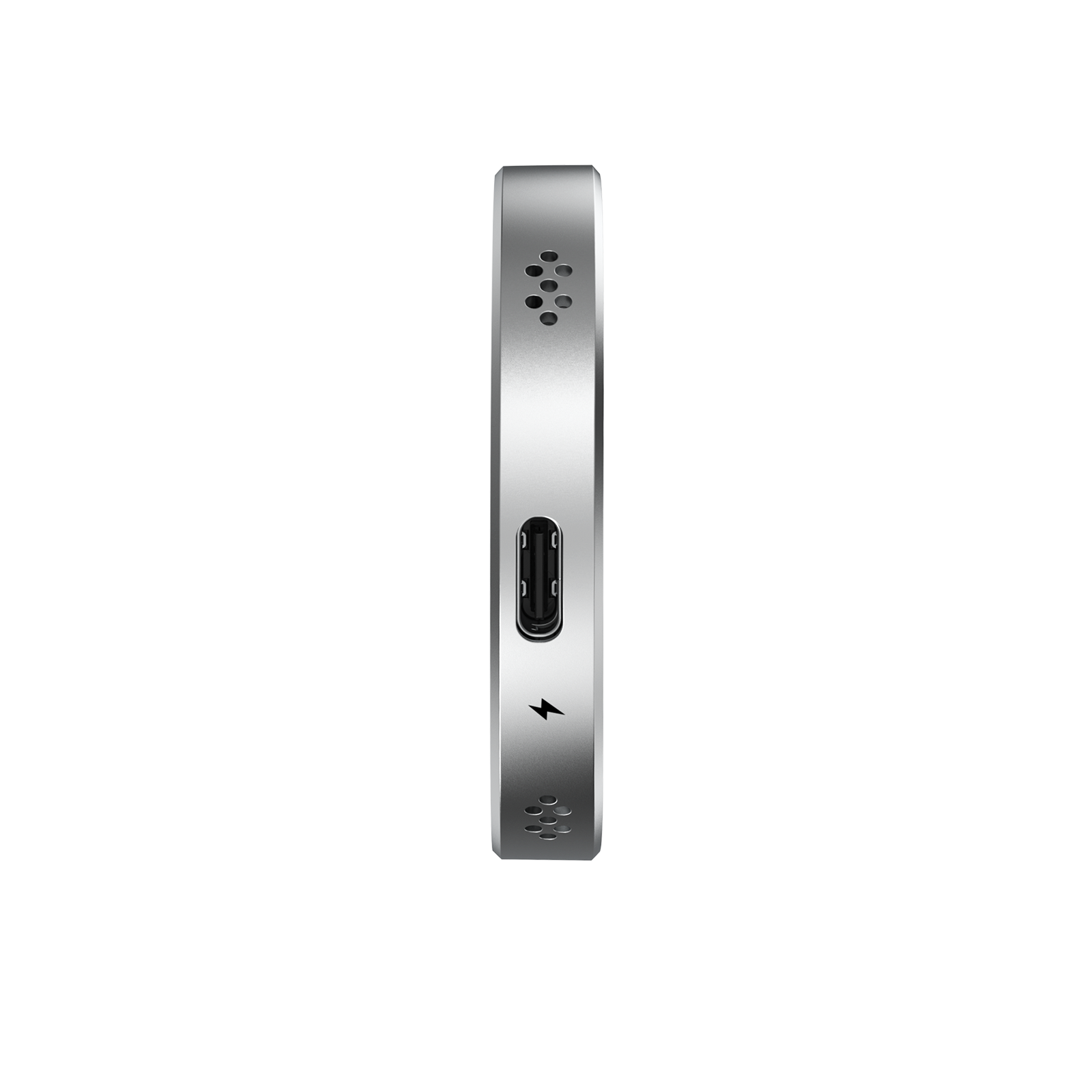

RENICE X5G liveSSD is a type of mobile phone external video recording SSD (liveSSD). With USB 3.2 Gen 2x2 interface, the X5G can transfer a 2GB file in almost 1 second achieving sequential read/write speeds of up to 2,000MB/s and 1,800MB/s. Integrated another USB Type-C charging port utilizing fast charge protocol (PD3.0 and QC2.0), the X5G can support real-time video recording (iPhone 15 Pro+) while charging without pausing your recording. Furthermore, there are two options for fixing. The grab design version comes with embedded retractable clip for attaching to your phone. Or the magnetic version, which can be easily attached to MagSafe-eabled phones.
Electric Specification
Average Power Consumption (Read/Write at full speed) 1.2W/ 3.1W @1TB
Average Power Consumption (Mobilephone Playback/Recording) 1.08W/ 1.11W @1TB
Standby Power Consumption 0.7W
Over Voltage & Current Protection Support
Mechanical Specification
Dimension LxWxH: 70x35x8mm(the grab design version) Diameter: 57mm, Thickness: 8mm(the magnetic version)
Housing Material Aluminum Alloy
Data Interface Standard USB Type-C, Female Connector,24PIN(USB3.2Gen2X2, 20Gbps)
Charging Interface Standard USB Type-C, Female Connector,16PIN
Weight 40g
Back-clip Stretching Range 68-82mm
Performance
Sequential Read 2,086MB/s
Sequential Write 1,849MB/s
Random Read (4k) 38.8MB/s
Random Write (4k) 126.9MB/s
sustainable write 1.1GB/s
Document
· RENICE X5G liveSSD DataSheet V1.1_20240621.pdf
· RENICE X5G Magnetic liveSSD DataSheet V1.0_20240923A.pdf
