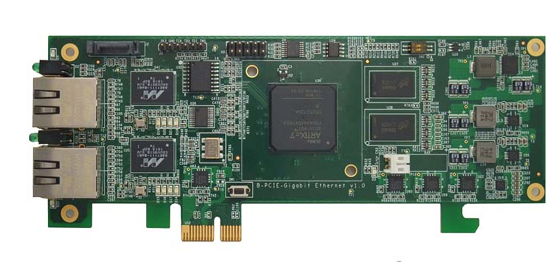

PCIe Gigabit Ethernet Transceiver card based on XC7A100T
This board use Xilinx company's Artix7 series XC7A100T-2FGG484 chip as the main processor. Includes 2x gigabit port network, 2x DDR, PCIeX1 V1.1 interface, which able to meet with the industrial requirements.
Specifications
Specification
| Main processor | XC7A100T-2FGG484I |
|---|---|
| Standard | Standard PCIe semi-high card, PCI Express 2.0 compliant, PCIe X1 mode supported |
| On-board cache | Two sets of 64M x 16bit DDR3 memory |
| Loading Flash | 16MB SPI Flash,apply for FPGA program loading |
| High speed interface | Two channel gigabit Ethernet interface, maximum support 1000Mbps line rate |
| Low speed interface | 8 LVTTL GPIO |
| Power supply | DC +12V,1A |
| Power consumption | 10W |
| Working temperature | Industrial -20℃ to +65℃ |
