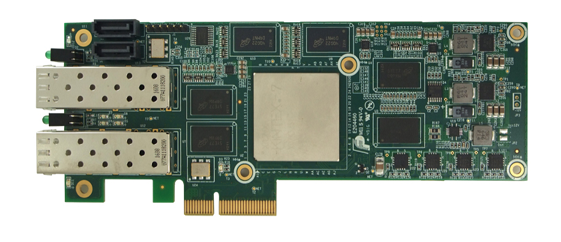

Kintex-7 XC7K325T double-channel 10MB optical fiber transceiver card with half height PCIe X4
The Xilinx XC7K325T-2FFG900i chip is used as the main processor, which can be used in 10MB network, high-speed data acquisition, optical fiber isolation gate and other fields. Application:Fiber optic data transceiver, isolation, accelerated computing.
Specifications
Specification
| Main processor | Xilinx XC7K325T-2FFG900I |
|---|---|
| Standard | PCI EXPRESS CARD REV. 1.1, Half height |
| Electrical | Support one channel PCIe X4 ,PCI Express V1.1/ V2.0 standard |
| On-board cache | The card carries one set 2GB 64bit DDR3 memory particles,one set 1GB 32bit DDR3memory particles and 2 sets 128MB 16bit DDR3 memory particles |
| Loading Flash | The card carries16MB SPI Flash,used for FPGA program loading |
| High speed interface | Two 10-gigabit optical fiber interface, maximum support 10Gbpsline rate. Two channel GTX interface, using SATA connector |
| Power supply | +12V@3A |
| Power consumption | 36W |
| Working temperature | Industrial -20℃ to +65℃ |
